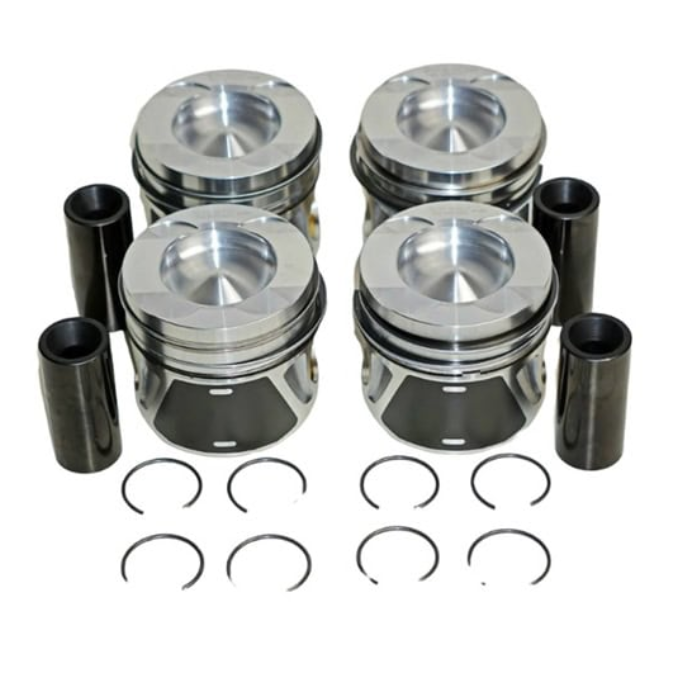

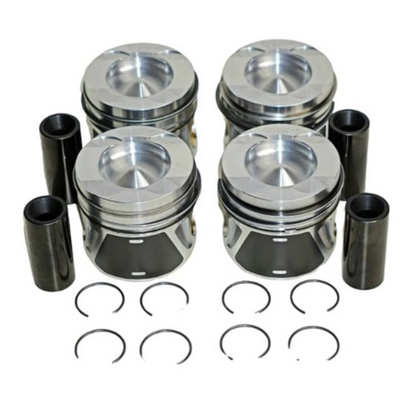

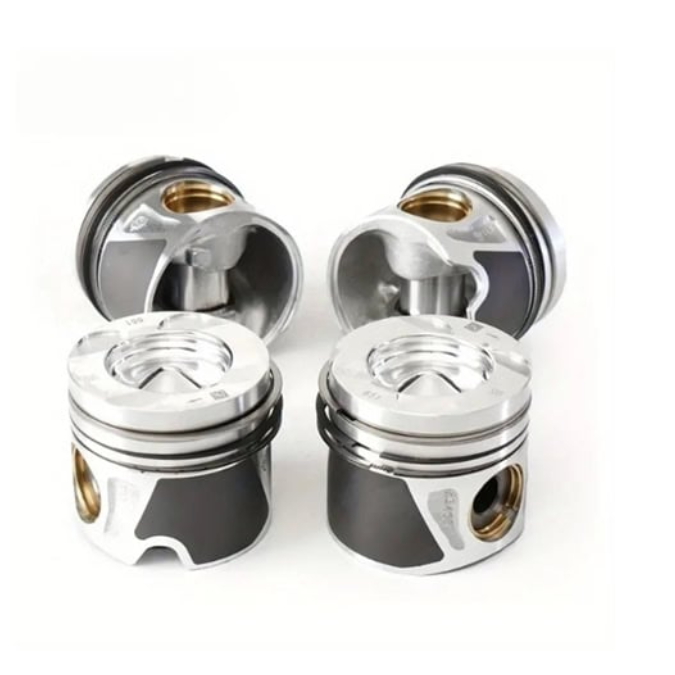

Piston Set 83mm STD - A6510302017 for Mercedes OM651

Engine Piston Kit – Compatible with Mercedes-Benz OM651 Engines

Upgrade or replace your engine piston with this premium-quality replacement, designed for Mercedes-Benz OM651 series engines. Manufactured to OEM specifications, this piston ensures optimal performance, durability, and efficiency for your vehicle’s engine.

Compatible Mercedes-Benz Models:

✔ C-Class (C204, S204, W204) – C180 CDI, C200 CDI, C220 CDI, C250 CDI
✔ CLS-Class (C218, X218) – CLS 220 BlueTEC, CLS 250 BlueTEC
✔ E-Class (A207, C207, S212, W212) – E200 CDI, E220 CDI, E250 CDI
✔ GLK-Class (X204) – 200 CDI, 220 CDI, 250 CDI
✔ GLE-Class (W166) – GLE 250d
✔ M-Class (W166) – ML 250 CDI
✔ S-Class (W221) – S 250 CDI
✔ SLC-Class (R172), SLK-Class (R172) – SLC 250d, SLK 250 CDI
✔ Sprinter (B906) – Various 3.5T, 4.6T, and 5T Models

Technical Specifications:

• Cylinder Bore: 83.00mm
• Length: 76mm
• Compression Height: 48.5mm
• Bolt Length: 66mm
• Bolt Diameter: 30mm
• Recess Depth: 13.25mm
• Recess Diameter: 49.4mm
• Valve Pocket Depths: 0.86mm / 1.54mm
• Machined: With cut-out for oil jet
• Supplementary Features:
  • Piston ring carrier
  • Cooling duct
  • Cooled piston ring carrier
• Top Land Height: 12.2mm
• Piston Clearance: 0.120mm

OEM Part Numbers:

• A6510301117, A6510303217, A6510302217, A6510301917
• A6510302017, A6510301017

Additional Information:

• Production Number: 83 L 118
• Component Numbers:
  • 1st Ring: R2.00 IF CrK
  • 2nd Ring: M1.75 IFU P
  • 3rd Ring: DSF 2.00 Cr
• Packaging Dimensions:
  • Height: 12.80cm
  • Length: 9.50cm
  • Width: 9.50cm
• Net Weight: 983g

Key Features:

✔ OEM Precision Fit – Direct replacement, manufactured to exact Mercedes-Benz specifications
✔ High-Quality Construction – Engineered for maximum durability and reliability
✔ Optimized Performance – Maintains proper compression and fuel efficiency
✔ Enhanced Cooling System – Includes piston ring carrier and cooling duct for optimal heat dissipation
✔ Reliable & Long-Lasting – Designed for high-performance diesel engines

This engine piston kit is the perfect solution for maintaining or restoring peak engine performance in your Mercedes-Benz OM651-powered vehicle.

Order now for superior durability, efficiency, and performance!
