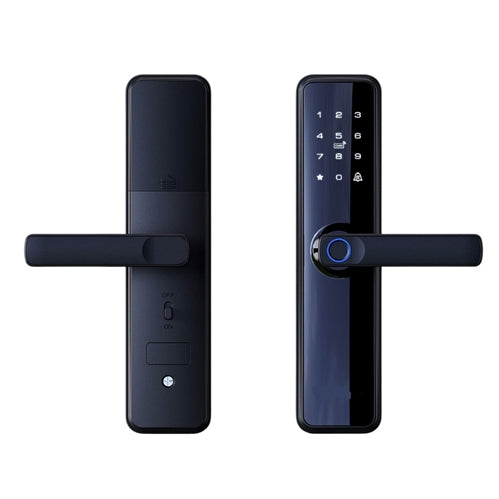

Smart Biometric Door Lock 2024 Model - Black Left

VD206 Universal Lock Body Specifications

Lock Body Configurations

The VD206 is available in two functional variants to accommodate different security needs:

• Single Tongue:
  Equipped with an automatic oblique latch. This version does not include a square tongue and is not designed for lifting or reverse locking functions—ideal for basic security applications.

• Double Tongue:
  Features both an automatic oblique latch and a square tongue, enabling lifting and reverse locking capabilities for enhanced protection.

Available Sizes:
4585, 5050, 5572, 6072, and 60/70 — suitable for a variety of lock body dimensions and door designs.

Technical Specifications

• Fingerprint Recognition: Advanced semiconductor sensor

• Power Supply: DC 4.0V–7.0V (powered by 4 × AAA batteries)

• Static Current: < 45mA

• Working Current: < 300mA (supports high drive loads)

• Low Battery Indicator: Activates at ≤ 4.8V

• Unlock Record Storage: Up to 1,000 recent entries

• Voice Prompts: Supports both Chinese and English

• Sensor Resolution: 500 DPI

• False Rejection Rate (FRR): ≤ 0.15%

• False Acceptance Rate (FAR): ≤ 0.00004%

• Operating Temperature Range: -25°C to +65°C

• Operating Humidity Range: 5% to 95% RH

Physical Specifications

• Compatible Door Thickness: 35mm to 50mm

• Panel Dimensions: 250mm (L) × 60mm (W) × 23mm (H)

Application Suitability

Designed with a blend of advanced biometric technology and solid mechanical construction, the VD206 Universal Lock Body is ideal for residential, commercial, and institutional installations. Its versatile configurations and reliable performance make it a dependable choice for modern access control solutions.
