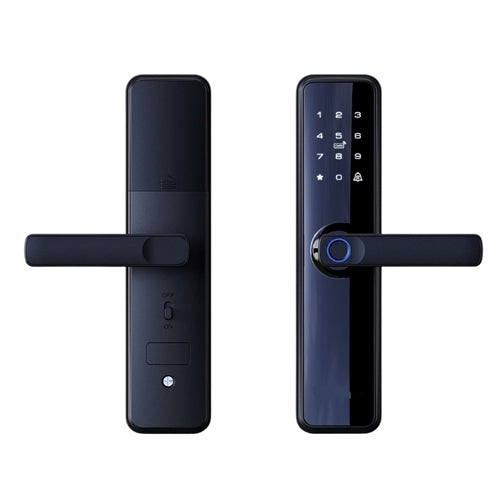

Smart Biometric Door Lock 2024 Model - Black Right

VD206 Universal Lock Body – Technical Overview

Lock Body Variants

The VD206 Universal Lock Body is available in two primary configurations to suit various security needs:

• Single Tongue Configuration:
  Equipped with an automatic oblique latch. Does not include a square tongue; suitable for standard locking applications without lift or reverse lock requirements.

• Double Tongue Configuration:
  Features both an automatic oblique latch and a square tongue, supporting lifting and reverse locking functions for enhanced security.

• Available Sizes:
  4585, 5050, 5572, 6072, and 60/70 – ensuring compatibility with a wide range of door profiles.

• Fingerprint Sensor: High-precision semiconductor-based recognition

• Power Supply: DC 4.0V–7V (powered by 4 × AAA batteries)

• Static Current Consumption: < 45mA

• Operating Current: < 300mA (supports high drive load)

• Low Battery Warning: Activates at ≤ 4.8V

• Access Logs: Capable of storing up to 1,000 recent unlocking records

• Voice Guidance: Bilingual support – Chinese and English

• Sensor Resolution: 500 DPI

• False Rejection Rate (FRR): ≤ 0.15%

• False Acceptance Rate (FAR): ≤ 0.00004%

• Operating Temperature Range: -25°C to 65°C

• Operating Humidity: 5% to 95% RH

• Compatible Door Thickness: 35mm to 50mm

• Panel Dimensions: 250mm (L) × 60mm (W) × 23mm (H)

The VD206 Lock Body combines advanced biometric technology with durable mechanical design, making it ideal for residential, commercial, and institutional use where reliability and access control are paramount.
